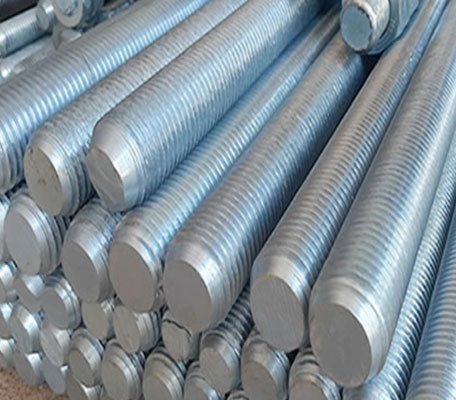

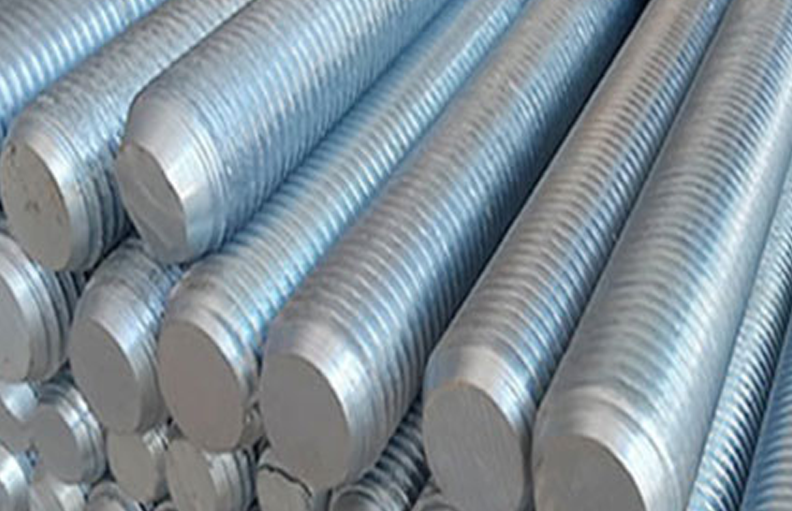

Threaded Bars
We manufacture all-Threaded Rods in wide range of diameters, meeting the requirements of the ASTM & DIN standards. The bars can be continuously threaded or threads may be put on ends. All bar types and diameters have matching fasteners including hex nuts and couplings designed to develop the full tensile strength of the bar. Also we can furnish standard internally threaded components or as per customer drawing.
Specifications :
- Low Carbon : Plain, Zinc, Hot dipped galvanized and Yellow
- ASTM A307 & A193B7 : Plain, Zinc and Yellow
- Stainless Steel : 18-8 All Alloy Steel & Stainless Steel
- Metric Rod : DIN975 & 976 in Class 4.8 , 8.8 & 10.9
- Threads : UNC, UNF, MM & BSW, right hand, left hand, and ACME
- Length : 1Mtr. To 3Mtrs. & 1feet to 12feet
- Diameters : M6 to M64 & ¼” to 2-1/2”
Applications of Threaded Bars
Threaded rods are used in a variety of sectors and for several purposes such as construction, plumbing, manufacturing, marine, agricultural, oil extraction and contractor work.
| Size | Wt Per 100 Feets in KGS |
| 1/4-20 | 5.50 |
| 5/16-18 | 9.00 |
| 3/8-16 | 13.25 |
| 7/16-14 | 17.60 |
| 1/2-13 | 23.00 |
| 9/16-12 | 29.85 |
| 5/8-11 | 38.00 |
| Size | Wt Per 100 Feets in KGS |
| 3/4-10 | 55.25 |
| 7/8-9 | 74.75 |
| 1-8 | 100.00 |
| 1 1/8-7 | 125.00 |
| 1 1/4-7 | 157.15 |
| 1 1/-2-6 | 232.50 |
| 2”-4 ½ | 400.55 |
